870

Style 870 u-seals are precision molded from Buna-N synthetic rubber. Style 870 u-seal numbers conform in size to Army-Navy specification AN6226.

SEAL INFORMATION
MATERIAL 70A BUNA-N RUBBER
TEMPERATURE RANGE -40° to +240° F
PRESSURE RANGE 0 to 500 PSI
PART NUMBER (Prefix) - (A-N Dash Number)

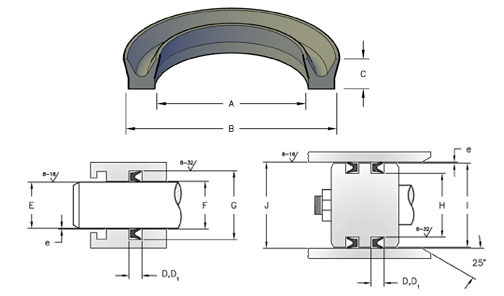

Part # I.D. (in) Height (in) O.D. (in)
870-006 1/8 1/16 1/4
870-01 1/8 3/16 1/2
870-02 3/16 3/16 9/16
870-03 1/4 3/16 5/8
870-04 5/16 3/16 11/16
870-05 3/8 3/16 3/4
870-06 7/16 3/16 13/16
870-07 1/2 3/16 7/8
870-08 1/4 1/4 3/4
870-09 5/16 1/4 13/16
870-10 3/8 1/4 7/8
870-11 7/16 1/4 15/16
870-12 1/2 1/4 1
870-13 9/16 1/4 1-1/16
870-134 2-1/2 1/4 3
870-14 5/8 1/4 1-1/8
870-15 11/16 1/4 1-3/16
870-16 3/4 1/4 1-1/4
870-17 13/16 1/4 1-5/16
870-18 7/8 1/4 1-3/8
870-19 15/16 1/4 1-7/16
870-2.62X3.12 2-5/8 1/4 3-1/8
870-20 1 1/4 1-1/2
870-21 1-1/16 1/4 1-9/16
870-22 1-1/8 1/4 1-5/8
870-23 1-3/16 1/4 1-11/16
870-24 1-1/4 1/4 1-3/4
870-25 1-1/4 5/16 1-7/8
870-26 1-3/8 5/16 2
870-27 1-1/2 5/16 2-1/8
870-28 1-5/8 5/16 2-1/4
870-29 1-3/4 5/16 2-3/8
870-2X2-3/8 2 3/16 2-3/8
870-3.12X3.62 3-1/8 1/4 3-5/8
870-3.62X4.12 3-5/8 1/4 4-1/8
870-30 1-7/8 5/16 2-1/2
870-31 2 5/16 2-5/8
870-32 2-1/8 5/16 2-3/4
870-33 2-1/4 5/16 2-7/8
870-34 2-3/8 5/16 3
870-35 2-1/2 5/16 3-1/8
870-36 2-1/2 3/8 3-1/4
870-37 2-5/8 3/8 3-3/8
870-38 2-3/4 3/8 3-1/2
870-39 2-7/8 3/8 3-5/8
870-4.12X4.62 4-1/8 1/4 4-5/8
870-40 3 3/8 3-3/4
870-41 1/8 1/8 3/8
870-42 3/16 1/8 7/16
870-43 1/4 1/8 1/2
870-44 5/16 1/8 9/16
870-45 3/8 1/8 5/8
870-46 7/16 1/8 11/16
870-47 1/2 1/8 3/4
870-48 5/8 3/16 1
870-49 3/4 3/16 1-1/8
870-5.12X6 5-1/8 7/16 6
870-5.2X6 5-1/4 3/8 6
870-5.2X6X.50 5-1/4 1/2 6
870-50 7/8 3/16 1-1/4
870-51 1 3/16 1-3/8
870-52 1-1/8 3/16 1-1/2
870-53 1-1/4 3/16 1-5/8
870-6.12X7 6-1/8 7/16 7
870-6.2X7X.50 6-1/4 1/2 7
870-60 3-1/4 3/8 4
870-65 4-1/4 3/8 5
870-6X7X.5 6 1/2 7
870-80 7 1/2 8
870-90 11 1/2 12
870-95 13 1/2 14
870-9X10 9 1/2 10
